Composite Tungsten Carbide/WC Roller
Request More Info

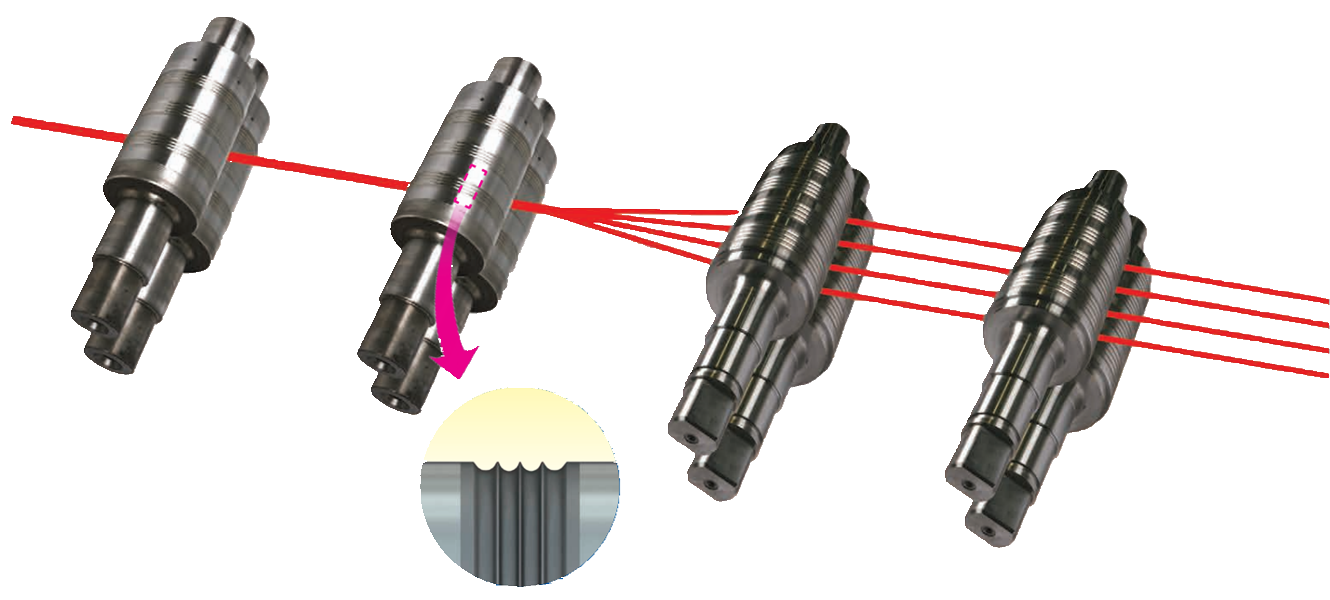

Cemented carbide composite roll is mainly used on the finishing mill for bar, deformed steel bar and common wire. In this wya, we can greatly reduce the frequency of changing groove and roll, thus to reduce the labor intensity and improve the work efficiency. The surface quality and yield shall be improved to a maximum degree, which leads to a remarkable economic benefit. Our cemented carbide composite roll adopts a special grade of cemented carbide.
External diameter(mm)
Φ285mm—Φ480mm
Width(mm)
50mm—140mm
Rolling size(mm)
5mm—28mm
| Grade | Chemical Composition | Physical Mechanical Properties | |||
| Wc | Co/Ni/Cr | Density
g/cm³ |
Hardness
HRA |
Transverse Rupture Strength
≥N/mm² |
|
| MF20F | 80 | 20 | 13.5 | 83 | 2650 |
| MF25F | 75 | 25 | 13.1 | 81 | 2600 |
| MF30F | 70 | 30 | 12.6 | 80.5 | 2580 |
| MF32F | 68 | 32 | 12.5 | 79.5 | 2400 |
