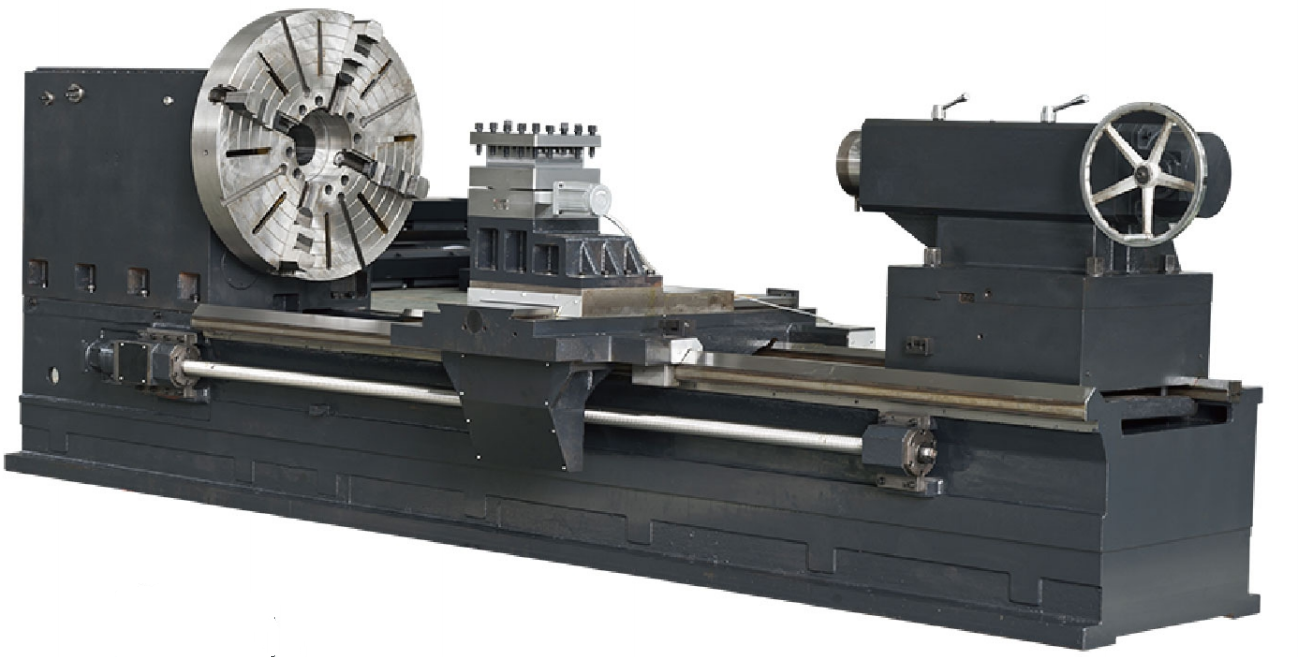

MF Series Largest CNC Heavy Duty Roll Turning Lathe

MF series heavy-duty horizontal CNC lathe adopts a floor-standing integral bed, a high-precision and high-load-bearing headstock, a widened hard guide rail and a heavy-duty tailstock design, which enables the machine tool to have high rotation accuracy, high motion accuracy, and high load-bearing capacity. It can be widely used in finishing and rough machining of large and heavy parts. Such as cast rolls, large oil cylinders, train axles, wind power parts, breaker cylinders and intermittent turning parts.

Swing over bed

Φ760mm—-Φ1850mm

Maximun turning diameter

Φ1000mm—Φ4000mm

Spindle through hole

Φ105mm—Φ142mm

Hydraulic chuck

400mm—1250mm

The MF series heavy-duty horizontal CNC lathe adopts a floor-standing integral bed, a high-precision and high-load-bearing headstock, a widened hard guide rail and a heavy-duty tailstock design, which enables the machine tool to have high rotation accuracy, high motion accuracy, and high load-bearing capacity. It can be widely used in finishing and rough machining of large and heavy parts. Such as large oil cylinders, train axles, wind power parts, breaker cylinders and intermittent turning parts.

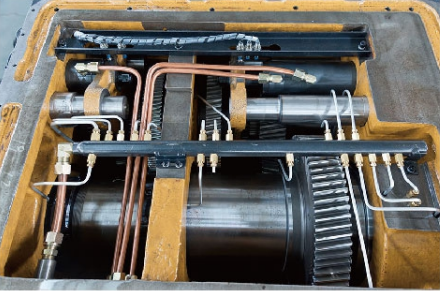

1>The headstock uses a programmable hydraulic automatic four-speed gearbox with infinitely variable speed.

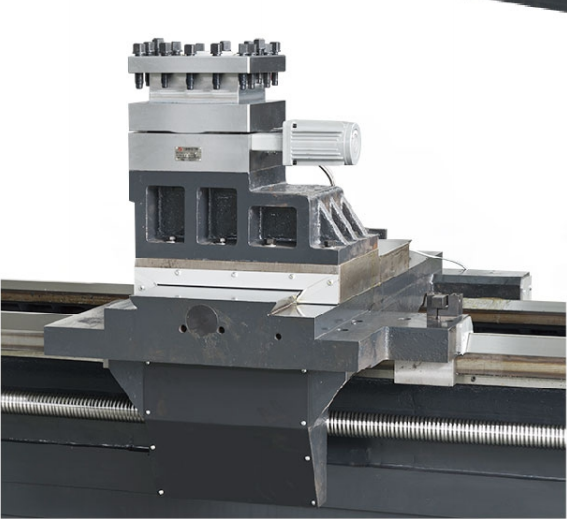

2>The tool post adopts a vertical four-station electric tool post, which is convenient, flexible and stable.

3>1000mm length model adopts fully enclosed enclosure for protection, and the rest adopt semi-enclosed protection, which has good waterproof and dustproof performance.

  Standard configuration: domestic CNC system, gear drive spindle box, manual chuck, manual tailstock, electric cabinet air conditioner, etc.
  Optional configuration: Fanuc/Siemens system, hydraulic chuck, hydraulic tailstock, center frame, automatic chip conveyor, automation components, etc.

Specification

MF75(MF75-750) MF85 MF100
Capacity Swing over bed mm 760 870 1040
Swing over saddle mm 395 505 615
Max workpiece length mm 1000/1750/2500/3250/4000 1000/1750/2500/3250/4000 1000/1750/2500/3250/4000
Guideway width mm 600 670 760
Max travel distance(X) mm 405(+360/-45) 400(+335/-65) 500(+415/-85)
Max travel distance(Z) mm (750)/1000/1750/2500/3250/4000 1000/1750/2500/3250/4000 1000/1750/2500/3250/4000
Max load between centers Kg 2000(1000 model)/4000 4000/(Optional heavy-duty tailstock)
Spindle Spindle nose ISO A2-11
Spindle through hole mm 105 124
Chuck diameter mm 400(Three claws 3-JAW) 500(Three claws 3-JAW) 800(Four claws 4-JAW)
Spindle taper 1:20(Φ120mm) 1:20(Φ140mm)
Speed range r/min Auto 4-Steps
25-835
Auto 4-Steps
20-635
Auto 4-Steps
20-600
Rated output torque Nm 1530 2020 2600
Feed Rapid Traverse X/Z m/min 6/6
Turret Turret  type 240×240
4-Station electric turret
300×300
4-Station electric turret
OD tool size mm 32×32 40×40
Boring bar diameter mm 25,32 40,50

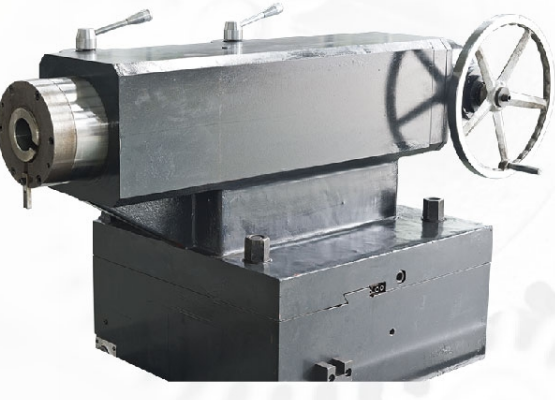

Tailstock Quill diameter mm 120(1000 model)/180 126(1000 model)/180 210
Quill travel mm 220 250
Quill bore taper MT6 MT6
Center type Live center(1000model)
(Fixed center)
Fixed center
Power Main spindle motor Kw 15 18.5
Dimension Width×Height mm 2250×1800 2350×1900 2730×2150
Length mm (3030)/3450/4200/4950/5700/6450 3575/4325/5075/5825/6575 3975/4725/5475/6225/6975
Weight Kg (4820)/5240/5820/6400/6980/7560 6950/7410/7940/8430/8970 8730/9320/9950/10550/11200

Specification

MF75(MF75-750) MF85 MF100
Capacity Swing over bed mm 760 870 1040
Swing over saddle mm 395 505 615
Max workpiece length mm 1000/1750/2500/3250/4000 1000/1750/2500/3250/4000 1000/1750/2500/3250/4000
Guideway width mm 600 670 760
Max travel distance(X) mm 405(+360/-45) 400(+335/-65) 500(+415/-85)
Max travel distance(Z) mm (750)/1000/1750/2500/3250/4000 1000/1750/2500/3250/4000 1000/1750/2500/3250/4000
Max load between centers Kg 2000(1000 model)/4000 4000/(Optional heavy-duty tailstock)
Spindle Spindle nose ISO A2-11
Spindle through hole mm 105 124
Chuck diameter mm 400(Three claws 3-JAW) 500(Three claws 3-JAW) 800(Four claws 4-JAW)
Spindle taper 1:20(Φ120mm) 1:20(Φ140mm)
Speed range r/min Auto 4-Steps
25-835
Auto 4-Steps
20-635
Auto 4-Steps
20-600
Rated output torque Nm 1530 2020 2600
Feed Rapid Traverse X/Z m/min 6/6
Turret Turret  type 240×240
4-Station electric turret
300×300
4-Station electric turret
OD tool size mm 32×32 40×40
Boring bar diameter mm 25,32 40,50
Tailstock Quill diameter mm 120(1000 model)/180 126(1000 model)/180 210
Quill travel mm 220 250
Quill bore taper MT6 MT6
Center type Live center(1000model)
(Fixed center)
Fixed center
Power Main spindle motor Kw 15 18.5
Dimension Width×Height mm 2250×1800 2350×1900 2730×2150
Length mm (3030)/3450/4200/4950/5700/6450 3575/4325/5075/5825/6575 3975/4725/5475/6225/6975
Weight Kg (4820)/5240/5820/6400/6980/7560 6950/7410/7940/8430/8970 8730/9320/9950/10550/11200
