MFX Series CNC Turning Lathe

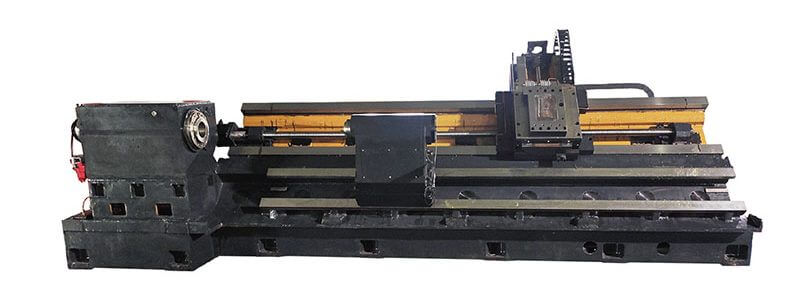

MFX series inclined bed CNC lathe adopts 45° inclined bed hard rail gear box spindle transmission structure, which strengthens the rigidity, precision and stability of the machine tool. This model is suitable for high hardness and high hardness such as cemented carbide, oil cylinders, valves, and bearings. For the machining of precision parts, some parts can achieve the machining effect of turning instead of grinding, and the roughness can reach Ra0.2.

Swing over bed

Φ550mm—-Φ1300mm

Maximun turning diameter

Φ360mm—Φ1250mm

Spindle through hole

Φ52mm—Φ142mm

Hydraulic chuck

210mm—810mm

MFX series inclined bed CNC lathe adopts 45° inclined bed hard rail gear box spindle transmission structure, which strengthens the rigidity, precision and stability of the machine tool. This model is suitable for high hardness and high hardness such as cemented carbide, oil cylinders, valves, and bearings. For the machining of precision parts, some parts can achieve the machining effect of turning instead of grinding, and the roughness can reach Ra0.2.
1>The headstock adopts programmable hydraulic automatic two/four-speed gearbox with stepless speed change within the gear.

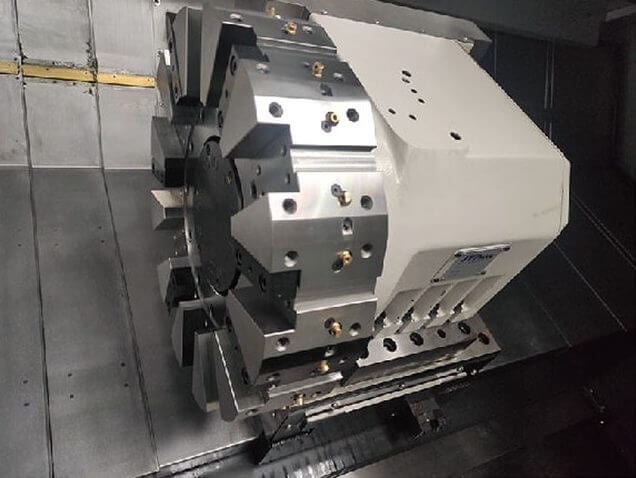

2>The turret adopts multi-station servo turret, which has high processing stability.

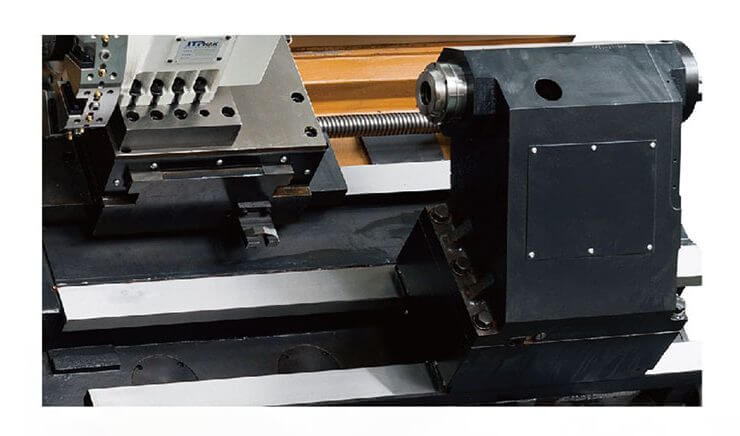

3>The tailstock adopts programmable control, and the tightening pressure of the tailstock is adjustable.

4>Models with a processing stroke of 2000mm or less are protected by a fully enclosed enclosure, and the rest are protected by a semi-enclosed enclosure, which has good waterproof and dustproof performance.

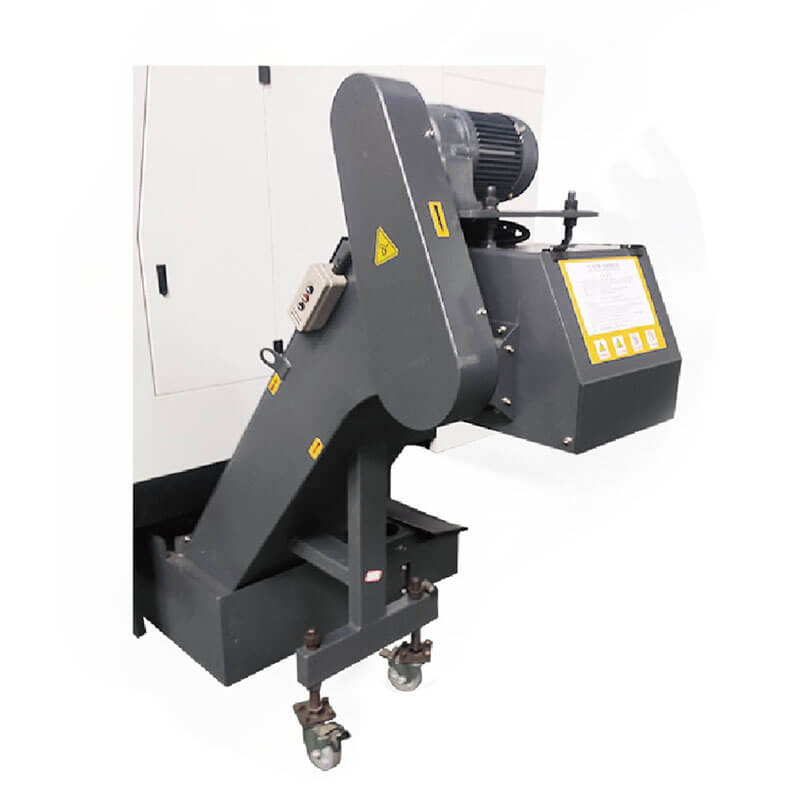

Standard configuration: Fanuc system, gear drive spindle box, hydraulic hollow chuck, hydraulic tailstock, automatic chip conveyor, etc.
Optional configuration: domestic/Siemens system, independent spindle, manual chuck, hydraulic center frame, automation components, etc.

Specification

MFX36 MFX50 MFX63 MFX80 MFX100 MFX125
Capacity Swing over bed mm 550 650 800 950 1100 1300
Swing over saddle mm 340 450 580 740 860 1050
Max turning diameter mm 360 500 630 800 1000 1250
Max turning length mm 550 (500)/850/1250/1650 (550)/1000/1500/2000/3000 1000/2000/3000/4000 1000/2000/3000/4000 1000/2000/3000/4000
Max travel distance(X) mm 220 300 340 440 540 660
Max travel distance(Z) mm 620 (600)/950/1350/1750 (650)/1100/1600/2100/3100 1100/2100/3100/4100 1100/2100/3100/4100 1100/2100/3100/4100
Spindle Spindle nose ISO A2-6 A2-8 A2-11 A2-11 A2-15 A2-15
Spindle through hole mm 52 82 105 124 142 142
Hydraulic chuck mm 210(8″)/40 304(12″)/66 381(15″)/88 530(21″)/108 610(24″)/114 810(32″)/114
Spindle taper MT6 1:20(Φ90mm) 1:20(Φ120mm) 1:20(Φ140mm) 1:20(Φ155mm) 1:20(Φ155mm)
Speed range r/min

Auto 2-Steps

80-1560

Auto 4-Steps

30-1200

Auto 4-Steps

30-1050

Auto 4-Steps

20-600

uto 4-Steps

15-450

Auto 4-Steps

12-380

Rated output torque Nm 200 780 1220 2600 4280 4890
Feed Rapid Traverse X/Z m/min 12/12 12/12 12/12 12/12 12/12 12/12
Turret No. of tool station   8 12 12 12 12 12
OD tool size mm 25×25 25×25 32×32 32×32 32×32 32×32
Boring bar diameter mm 40 40 50 50 50 50
Tailstock Quill diameter mm 100 120 160 180 180 210
Quill travel mm 100 150 150 150 150 250
Quill bore taper   MT5 MT5 MT6 MT6 MT6 MT6
Center type Live center (Fixed center Fixed center Fixed center Fixed center Fixed center
Power Main spindle motor Kw 7.5 11 15 18.5 22 22
Dimension Width×Height mm 1750×1750 1915×1950 2025×2050 2250×2250 2550X2450 2800X2700
Length mm 3700 (4050)/4525/4925/5325 (4430)/4990/5490/5990/6990 5225/6225/7225/8225 5650/6650/7650/8650 6100/7100/8100/9100
Weight Kg 4932 (5913)/6318/6645/6978 (7542)/7962/8383/8802/10000 10462/11462/12462/13462 17350/18850/20350/21850 18500/20000/21500/23000
