MFW Series Flat Bed Small Economical CNC Machining Lathe

The MFW series flat bed CNC lathe is a small economical CNC machining lathe. The design of the multi-stage gear transmission type headstock and hard rail greatly improves the rigidity and output torque of the machine tool. It is suitable for processing various shaft and disc parts, and has the characteristics of reliable structure, convenient operation and high degree of automation

Swing over bed

420mm—-630mm

Max workpiece length

650mm—3000mm

Guideway width

360mm—495mm

Chuck diameter

200mm—250mm

The MFW series flat bed CNC lathe is a small economical CNC machining lathe. The design of the multi-stage gear transmission type headstock and hard rail greatly improves the rigidity and output torque of the machine tool. It is suitable for processing various shaft and disc parts, and has the characteristics of reliable structure, convenient operation and high degree of automation.

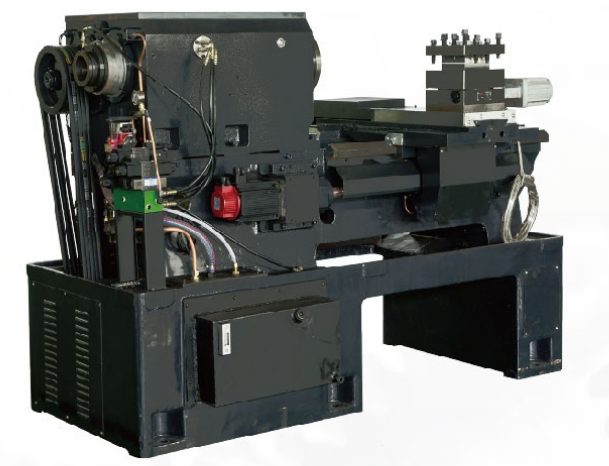

  • The headstock adopts programmable hydraulic automatic two/four-speed gearbox with stepless speed change within the gear.
  • The tool post adopts a vertical four-station electric tool post, which is convenient, flexible and stable.

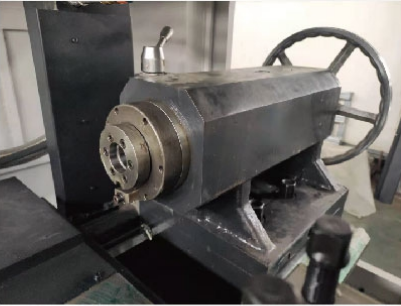

  • For models with a length of 1500mm and above, the machine is equipped with a built-in rotary spindle tailstock as standard.

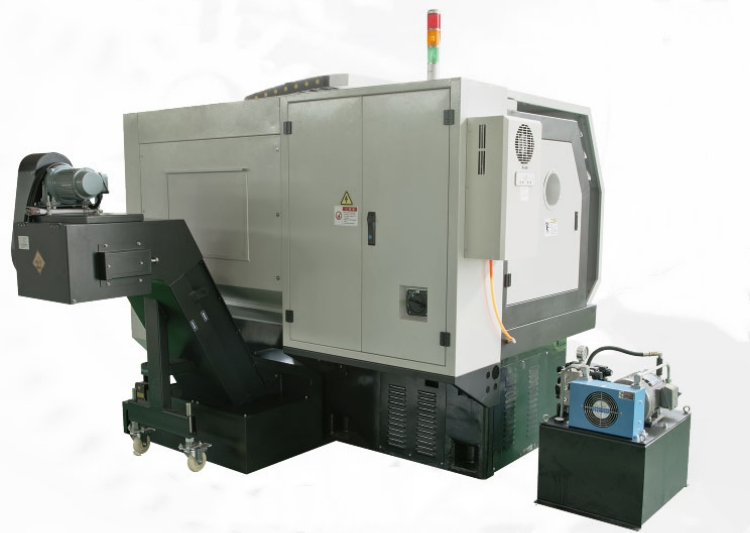

  • Models below 1000mm in length are protected by a fully enclosed enclosure, and the rest are protected by semi-enclosed, with good waterproof and dustproof performance.

     Standard configuration: Domestic CNC system, gear drive spindle box, manual chuck, manual tailstock, electric cabinet air conditioner, etc.
     Optional configuration: Fanuc/Siemens system, hydraulic chuck, hydraulic tailstock, center frame, automatic chip conveyor, automation components, etc.

Specification MFW40 MFW50 MFW63
Capacity Swing over bed mm 420 520 630
Swing over saddle mm 205 275 355
Max workpiece length mm 650 1000/1500/2000 1000/1500/2000/2500/3000
Guideway width mm 360 425 495
Max travel distance(X) mm 225(+210/-15) 280(+260/-20) 340(+320/-20)
Max travel distance(Z) mm 650 1000/1500/2000 (500)/1000/1500/2000/2500/3000
Spindle Spindle nose ISO ISO A2-6 ISO A2-8
Spindle through hole mm 52 82
Chuck diameter mm 200 250
Spindle taper Mohs 6 1:20(Φ90mm)
Speed range r/min Auto 2-Steps
80-1560
Auto 4-Steps
30-1200
Rated output torque Nm 200 530 780
Feed Rapid Traverse X/Z m/min 6/8
Turret Turret  type 4-Station electric turret
OD tool size mm 25×25 25×25 32×32
Boring bar diameter mm 25 25,32 25,32
Tailstock Quill diameter mm 85 85(1000 model)/ 150 100(1000model)/ 150
Quill travel mm 150 150(1000model)/ 120 180(1000model)/ 120
Quill bore taper MT5 MT5 MT5
Center type Live center Live center(1000model)
Fixed center
Power Main spindle motor Kw 7.5 7.5 11
Dimension Width×Height mm 1350×1600 1470×1650 1520×1750
Length mm 2300 2670/3170/3670 (2165)/2825/3335/3835/4435/4835
Weight Kg 2480 3470/3880/4680 (3050)/3770/4180/4980/5470/5950
