MFVC Series Vertical Machining Center

The MFVC series is a vertical machining center with unique market characteristics developed by our company. This machine tool is widely used in parts processing in auto parts, molds, machinery manufacturing and other industries. The machine tool is equipped with an automatic tool exchange system. The parts can be processed in multiple procedures after one clamping. It has the advantages of good rigidity, high degree of automation, strong reliability, and simple operation.

Worktable size

1000×500—-1700×800

Worktable load capacity

600kg—1500kg

T-slot size

5x18x100—5x18x125

Max spindle speed

8000/ (2500)—6000/ (2500)

The MFVC series is a vertical machining center with unique market characteristics developed by our company. This machine tool is widely used in parts processing in auto parts, molds, machinery manufacturing and other industries. The machine tool is equipped with an automatic tool exchange system. The parts can be processed in multiple procedures after one clamping. It has the advantages of good rigidity, high degree of automation, strong reliability, and simple operation.

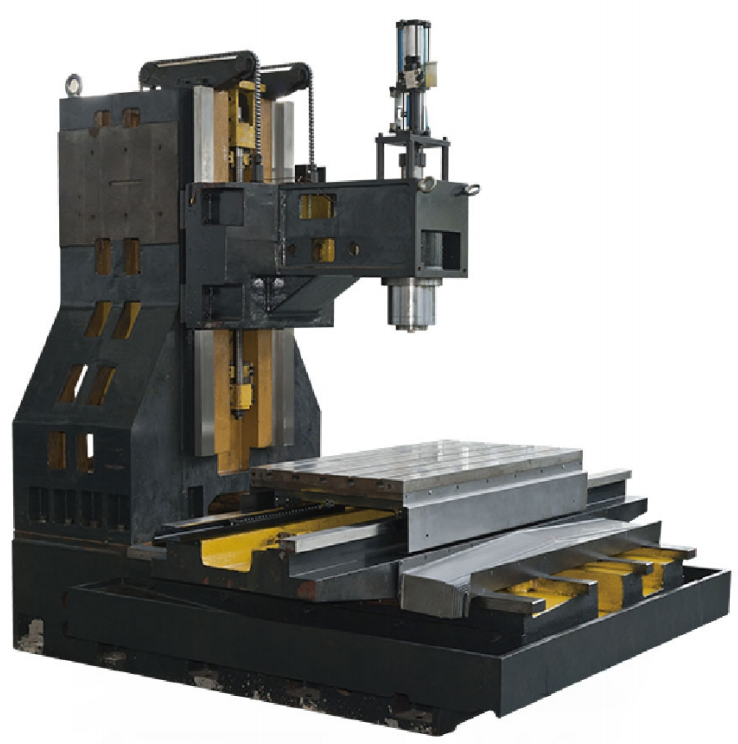

  • The whole machine casting is designed in a one-piece structure, making the machine as solid as a rock.
  • The column has a large span herringbone structure and an optimised bar layout.The rigidity of the column to meet the demands of the machine’s powerful cutting.

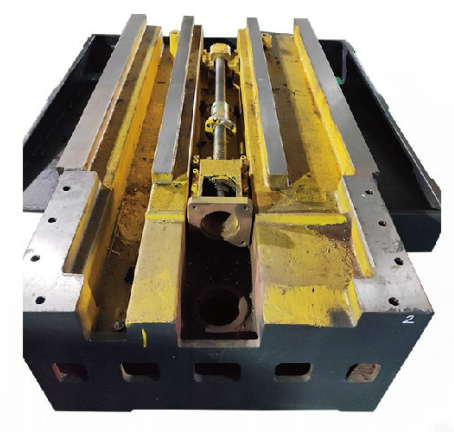

  • The 4-guide waydesign of all beds ensures a high level of machine tool capacity during machining load capacity.
  • All models are designed with a 3-way hard rail structure for greater stability on heavy turningmachines.

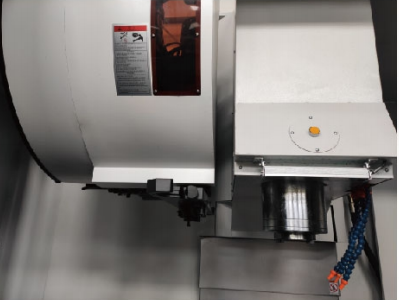

  • Stable tool magazine installation, repeated tool change tests before leaving the factory to ensure smooth and reliable tool changes Smooth and reliable tool change.
  • A wide range of spindle outputs are available: belt spindle, direct-connected spindle spindle, integrated gearbox spindle.
  • All gears of the gearbox type spindle are carburized and hardened and ground to achieve a stable high torque and silent output.

     Standard configuration: Fanuc CNC system, disc tool magazine, automatic chip conveyor, electric cabinet air conditioner, etc.
     Optional configuration: Mitsubishi/Siemens/domestic system, linear rail model, fourth-axis turntable, spindle oil cooling device, spindle center water outlet device, etc.

Specification MFVC850 MFVC1080 MFVC1380 MFVC1680
Worktable
Worktable size mm 1000×500 1200×600 1400×700 1700×800
T-slot size mm 5x18x100 5x18x100 5x18x125 5x18x125
Worktable load capacity kg 600 800 1000 1500
Working Travel
Axial travel (X/Y/Z) mm 850/550/600 1080/550/600 1380/700/650 1680/700/650
Distance from spindle nose to table mm 100-700 100-700 150-800 150-800
Distance from spindle center to column mm 600 600 800 800
Rapid traverse
Rapid traverse X m/min 18 18 18 18
Rapid traverse Y m/min 18 18 18 18
Rapid traverse Z m/min 16 16 16 16
Spindle
Main motor power(Cont./ 30min) Kw 7.5/11 11/15(7.5/11) 15/18.5 15/18.5
Transmission type Belt
2-Step Gear
Max spindle speed rpm 8000/ (2500) 8000/ (2500) 6000/ (2500) 6000/ (2500)
Taper hole of spindle TaperNo.40 (7:24) TaperNo.50 (7:24)
Tool Magazine
Capacity Rotary disc type tool magezine,24 piece
Tool holder type BT40 BT40 BT50 BT50
Max tool diameter /length mm Φ78/300 Φ78/300 Φ105/350 Φ105/350
Max tool weight Kg 8 8 15 15
Time of tool changing s 1.55 1.55 2.91 2.91
Others
CNC System FANUC FANUC FANUC FANUC
Outside size(L×W×H) mm 2700×2240×2250 3000x2450x2250 3450×2850×2500 4200×2850×2500
Machine tool weight Kg 6500/ (6800) 8000/ (8300) 10000/ (10600) 11500/ (12100)
